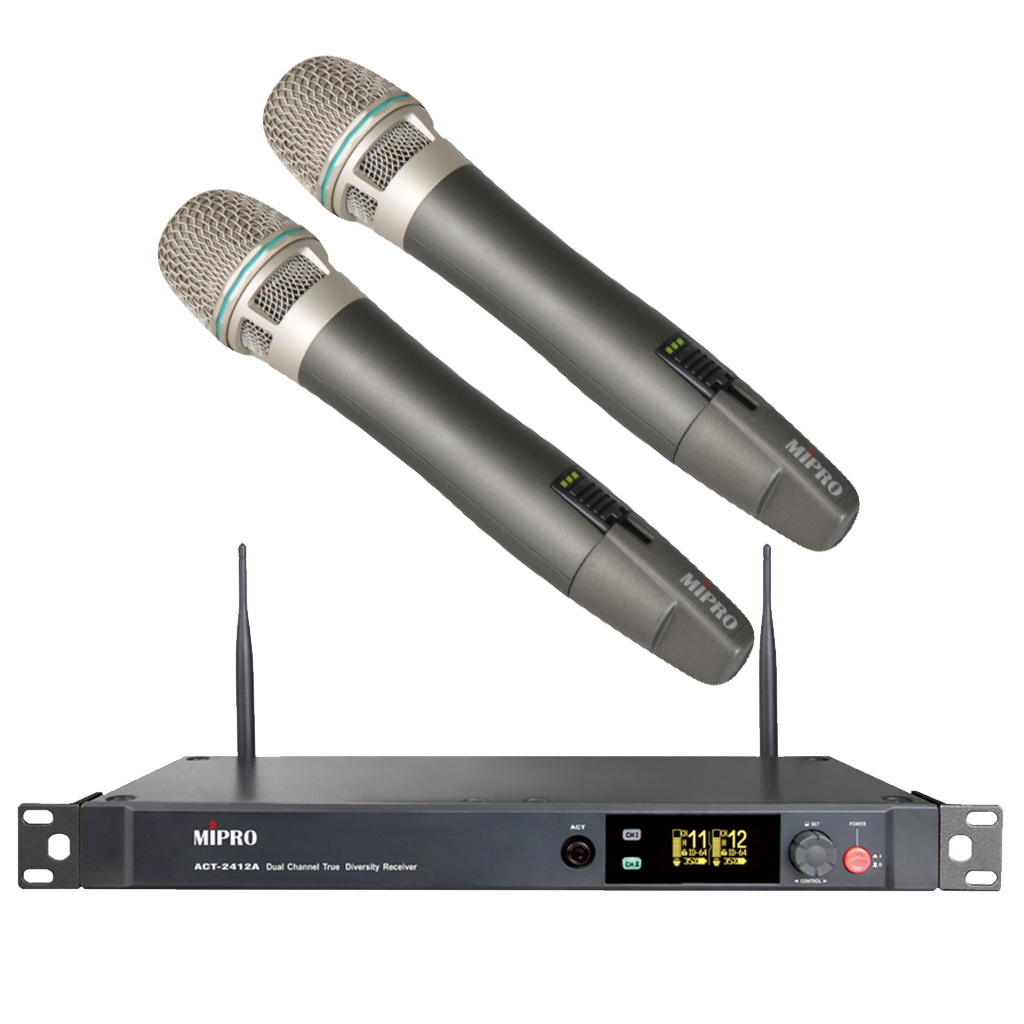

Mipro Full-Rack dual-channel digital receiver(2.4GHz) with 2 handheld transmitters and 1 charger MP-80

Features:

ACT-2412A 2.4 GHz Digital Dual-Channel Receiver

• The receiver has antenna connectors on the rear panel for connecting the external antenna system.
• MIPRO’s unique control panel equips a graphic OLED, providing a larger field of view without blind angles.
• Up to 12 channels for interference-free operation in one frequency band.
• Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
• Equipped with TNC connectors for daisy chain output which can be daisy-chained up to three receivers.
• MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
• Effectively avoids RF interference from UHF communication products
• Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
• External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
• Pairs with ACT-240H handheld and ACT-240T bodypack transmitter.
• All are designed and made in Taiwan to ensure high quality and value.


ACT-24HC Rechargeable Handheld Transmitter

• Rechargeable Handheld Transmitter
• Bright LEDs for battery status
• Patented design of the integrated grille and battery housing makes it easy to unscrew the grille to open the battery compartment to exchange the lithium battery or simply charge the transmitter in the charger
• World’s first ACT™ function provides precise and rapid frequency sync to the receiver.
• Transmitter has high-efficiency circuitry design. The included single rechargeable lithium battery can be easily removed or interchanged for charging. The intelligent battery charger maintains a high charge capacity for up to 600 charge cycles for cost saving and is environmentally friendly.
• Frequency Range 2.4 - 2.4835 GHz
•  Channel Set-Up ACT Sync
•  RF Output Power 2 mW / 10 mW switchable (country dependent)
• Battery Type ICR 18500 rechargeable lithium battery × 1
• Operating Time A 25-minute fast charge provides up to 1 hour operation. Minimum 10 hours of operation per 4-hour full charge (depending on the battery quality).
• Dimensions (Ø × L) 51× 248 mm / 2.0 × 9.8

ACT-2412A Data Sheet

ACT-24HC Data Sheet
